Packaged Units

Our complete line of packaged systems include Packaged Air Conditioners, Packaged Gas Furnaces and Air Conditioners, Packaged Heat Pumps and Packaged Hybrid Heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.

Just like individual furnaces, air conditioners and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.

The DOE’s regional breakdown by state is as follows:

North
- 14.0 SEER/ 13.4 SEER2
- 8.0 HSPF/6.7 HSPF2
- 80% AFUE
Southeast
- 15.0 SEER/ 14.3 SEER2
- 8.0 HSPF/6.7 HSPF2
- 90% AFUE
Southwest
- 15.0 SEER/ 14.3 SEER2
- 8.0 HSPF/6.7 HSPF2
- 90% AFUE

SEER/SEER2 And HSPF/HSPF2

SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.

HSPF2 is the newest type of rating system that expands on the basic HSPF scale.

Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).

EER2 versus SEER2

EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:

EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.

Right-Size Your HVAC Packaged Units. Give Air Flow Pros Heating & Air Conditioning A Call Today!

We carry a wide offering that includes advanced features such as 2-stage compressors, variable speed fans and quiet operation. Call us now at (415) 400-5140.

Air Conditioning Only Product Offering

14 Single-Stage Air Conditioner Packaged-R454B

‍View Brochure

Model Family: 5TCC****

Efficiency SEER2: up to 14.3 SEER2

Efficiency EER2: N/A

Energy Star Certified: No

Sound Level: Quiet Operation

Blower Motor: composite Vortica® indoor blower

Refrigerant Type: R-454B

Compressor: ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10-Year Parts Limited Warranty when Registered

Factory Warranty Compressor: 10-Year Compressor Limited Warranty when Registered

Manufacturer's Stated Benefits:

all-aluminum SpineFin™ outdoor coil,
All Trane systems undergo 16 weeks of extreme testing

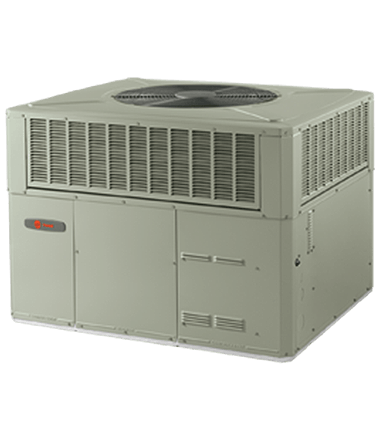

XR13.4c Air Conditioner Packaged System

‍View Brochure

Model Family: 4TCC4

Efficiency SEER2: Up to 13.4 SEER2

Efficiency EER2: N/A

Energy Star Certified: No

Sound Level: Quiet Operation

Blower Motor: Variable-Speed Blower Motor With Comfort-R™

Refrigerant Type: R410A

Compressor: Single Speed Climatuff Compressor

Factory Warranty Parts: 10-Year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with registration

Manufacturer's Stated Benefits:

All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top
Appliance-Grade Finish

Gas Heating & Electric Cooling Product Offering

15 Two-Stage Gas Furnace/Air Conditioner Packaged-R454B‍

‍View Brochure

Model Family: 5YCZ5****-R454B

Efficiency SEER2: 15.2 SEER2

Efficiency EER2: 11.5 EER2

Annual Fuel Utilization Efficiency: 81% AFUE

Energy Star Certified:

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Gas Valve: Two-Stage Gas Valve

Blower Motor: variable speed Vortica™ blower motor

Compressor: Climatuff® Compressor Two-stage

Factory Warranty Parts: 10 year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 12 year Limited Warranty on Compressor with registration

Heat Exchanger Warranty: 20 year Limited Warranty on Heat Exchanger^ with registration

Manufacturer's Stated Benefits:

State-Of-The-Art Fan System
All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top

15 3-Phase Two-Stage Gas Furnace/Air Conditioner Packaged -R454B

View Brochure

Model Family: 5YCZ5-3PH-****-R454B

Efficiency SEER2: Up to 15.2 SEER2

Efficiency EER2: N/A

Annual Fuel Utilization Efficiency: 81% AFUE

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Gas Valve: Two-Stage Gas Valve

Blower Motor: composite Vortica® indoor blower

Compressor: 3-phase ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10- year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 12-Year Limited Warranty on Compressor with registration

Heat Exchanger Warranty: 20-Year Limited Warranty on Heat Exchanger with registration

Manufacturer's Stated Benefits:

Stainless Steel Heat Exchanger and Burners
All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top

14 Single-Stage Gas Furnace/Air Conditioner Packaged-R454B

View Brochure

Model Family: 5YCC4****-R454B

Efficiency SEER2: up to 14.3 SEER2

Efficiency EER2: N/A

Annual Fuel Utilization Efficiency: 81% AFUE

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Gas Valve:

Blower Motor: Variable-Speed Blower Motor With Comfort-R

Compressor: Climatuff® Compressor

Factory Warranty Parts: 10-Year Limited Warranty on Parts with Registration

Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with Registration

Heat Exchanger Warranty: 20-Year Limited Warranty on Heat Exchanger with Registration

Manufacturer's Stated Benefits:

State-of-the-Art Fan System
Stainless Steel Heat Exchanger and Burners
Durable Weather-Beater Top

14 3-Phase Single-Stage Gas Furnace/Air Conditioner Packaged-R-454B

View Brochure

Model Family: 5YCC4-3PH-****-R -454B

Efficiency SEER2: Up to 14.3 SEER2

Efficiency EER2: N/A

Annual Fuel Utilization Efficiency: 81% AFUE

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Gas Valve:

Blower Motor: Variable-Speed Blower Motor With Comfort-R™

Compressor: Climatuff™ compressor

Factory Warranty Parts: 10-Year Limited Warranty on parts with Registration

Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with Registration

Heat Exchanger Warranty: 20-Year Limited Warranty on Heat Exchanger with Registration

Manufacturer's Stated Benefits:

Stainless Steel Heat Exchanger and Burners
All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top

Heat Pump Product Offering

15 Two-Stage Heat Pump Packaged-R454B

View Brochure

Model Family: 5WCZ5****-R454B

Efficiency SEER2: up to 15.2 SEER2

Efficiency EER2:

Efficiency HSPF2: up to 8.1 HSPF2

Energy Star Certified: ENERGY STAR®

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: variable speed Vortica™ blower motor with Comfort-R

Compressor: ClimaTuff™ high-efficiency 2-stage compressor

Factory Warranty Parts: 10-Year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 12-Year Limited Warranty on Compressor with registration

Manufacturer's Stated Benefits:

State-Of-The-Art Fan System
All-Aluminum Spine Fin™ Coil
Stainless Steel Heat Exchanger and Burners
Durable Weather-Beater Top

15 3-Phase Two-Stage Heat Pump Packaged-R-454B

View Brochure

Model Family: 5WCZ50-3Ph-****-R-454B

Efficiency SEER2: Up to 15.2 SEER2

Efficiency EER2:

Efficiency HSPF2: Up to 8.1 HSPF2

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: composite Vortica® indoor blower

Compressor: 3-phase ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10-Year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 12-Year Limited Warranty on Compressor with registration

Manufacturer's Stated Benefits:

State-Of-The-Art Fan System
All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top

14 Single-Stage Heat Pump Packaged-R-454B

View Brochure

Model Family: 5WCC4****-R-454B

Efficiency SEER2: Up to 13.6 SEER2

Efficiency EER2: N/A

Efficiency HSPF2: Up to 7 HSPF2

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: composite Vortica® indoor blower

Compressor: ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10-Year-Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with Registration

Manufacturer's Stated Benefits:

all-aluminum Spine Fin™ outdoor coil
State-Of-The-Art Fan System

14 3-Phase Single-Stage Heat Pump Packaged-R454B

View Brochure

Model Family: 5WCC40-3PH-****-R-454B

Efficiency SEER2: Up to 13.6 SEER2

Efficiency EER2: N/A

Efficiency HSPF2: Up to 7 HSPF2

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: composite Vortica® indoor blower

Compressor: 3-phase ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10-Year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 10-Year Limited Warranty on Compressor with registration

Manufacturer's Stated Benefits:

all-aluminum SpineFin™ outdoor coil
State-Of-The-Art Fan System
Stainless Steel Heat Exchanger and Burners

Dual Fuel / Hybrid Heating Product Offering

15 Two-Stage EarthWise™ Hybrid Gas Furnace/Heat Pump Packaged-R454B

View Brochure

Model Family: 5DCZ5******-R-454B

Efficiency SEER2: Up to 15.2 SEER2

Efficiency EER2: N/A

Annual Fuel Utilization Efficiency: 81% AFUE

Efficiency HSPF2: Up to 8.1 HSPF2

Energy Star Certified: ENERGY STAR®

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: variable speed Vortica™ blower motor

Compressor: Climatuff™ 2-stage compressor

Factory Warranty Parts: 10-Year Parts Limited Warranty when Registered

Factory Warranty Compressor: 12-Year Compressor Limited Warranty when Registered

Heat Exchanger Warranty: 20-Year Heat Exchanger Limited Warranty when Registered

Manufacturer's Stated Benefits:

stainless steel heat exchangers and burners
Spine Fin™ coil

15 3-Phase Two-Stage Heat Pump Packaged-R-454B

View Brochure

Model Family: 5WCZ50-3Ph-****-R-454B

Efficiency SEER2: Up to 15.2 SEER2

Efficiency EER2:

Efficiency HSPF2: Up to 8.1 HSPF2

Energy Star Certified: No

Sound Level: Quiet Operation

Refrigerant Type: R-454B

Blower Motor: composite Vortica® indoor blower

Compressor: 3-phase ClimaTuff™ high-efficiency compressor

Factory Warranty Parts: 10-Year Limited Warranty on Functional Parts with registration

Factory Warranty Compressor: 12-Year Limited Warranty on Compressor with registration

Manufacturer's Stated Benefits:

State-Of-The-Art Fan System
All-Aluminum Spine Fin™ Coil
Durable Weather-Beater Top
