Duct Free Systems
Duct Free Systems
How do you get cleaner, more comfortable air flowing into a home that has no central HVAC system? What about when you’ve put in an addition to your home that’s isolated from the existing ductwork? No ductwork? No problem. Even homes without ductwork can be filled with comfort and peace of mind thanks to American Standard Heating & Air Conditioning ductless systems. They provide durable, energy-efficient heating and cooling solutions for these and other situations. That’s because these energy-efficient systems forgo the ducts in favor of a pair of indoor and outdoor units to heat and cool your home. Furthermore, you have more control over the air quality needs of specific areas. You can implement single-zone climate control and manage the temperature from room to room. Duct free heating and cooling systems make your home's individual rooms or other small spaces more comfortable. Remember, just like whole-home systems, the higher the SEER and HSPF ratings, the more efficient they will be.
Have a look at the ductless air conditioner and heat pump units that are available. And remember that your comfort level as well as the energy-efficiency and price levels will vary based on your individual needs.
Ductless High Wall Indoor Heat Pump

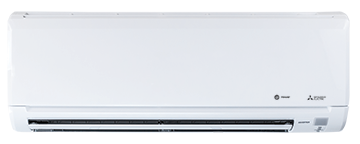

Deluxe Wall Mount PH
Model Family: NTXSPB***
Purpose: Heat and Cool
Zone Capability: Single Zone and Multizone
Efficiency SEER2: Up to 33.1 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 13.5 HSPF2
Matching Outdoor Unit: Single-Zone: PH outdoor heat pump NTXSPB***
Matching Outdoor Unit: Multi-Zone: NTXMMX*** -NTXMPH***
Energy Star Certified: ENERGY STAR®
Refrigerant Type: R410A
Number of Fan Speeds: 5 fan speeds
Sound Level: Quiet operation
Wireless Remote: Contol Options Available
Factory Warranty Parts: Registered Limited Warranty period: 10 years on internal functioning parts with registration;1year on internal functioning parts without registration
Manufacturer's Stated Benefits:• Available capacities in kBtu/h: 06, 09, 12, 15, 18• 100% heating at 5° F• Hyper-heating performance down to -13° F outdoor ambient• Double-vane air delivery for enhanced circulation• 3D i-see Sensor™• Infrared human sensing technologies to measure location of human heat signatures• Multi-function wireless controller• Cleaner air with washable anti-allergen filters
Standard Wall Mount ST
Model Family: NTXWST***
Purpose: Heat and Cool
Zone Capability: Single Zone and Multizone
Efficiency SEER2: Up to 24.6 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 12.8 HSPF2
Matching Outdoor Unit: Single-Zone: ST series outdoor heat Pump NTXSST***
Matching Outdoor Unit: Multi-Zone: NTXMMX*** -NTXMPH***
Energy Star Certified: ENERGY STAR®
Refrigerant Type: R410A
Number of Fan Speeds: Vertical air swing
Sound Level: Quiet operation
Wireless Remote: Control Options available
Factory Warranty Parts: Registered Limited Warranty period: 10 years on internal functioning parts with registration;1year on internal functioning parts without registration
Manufacturer's Stated Benefits:
- Installs quickly and easily, without the need for major construction and remodeling
- Realizes maximum control and energy efficiency by cooling and heating only those spaces in use
- Comfort control of temperature, fan speed, and air direction in each room via kumo cloud® or other smart home devices
- Cleaner air with washable anti-allergen filters
- Provides instant warmth even in extreme climates (down to -13° F)
- Maximizes energy savings by using only the energy needed to perfectly cool or heat an area
- Available capacities in kBtu/h: 09, 12, 15, 18, 24, 30, 36
- Auto restart and auto cooling/heating changeover
18 SEER Wall Mount – ML
Model Family: NTXWMT***
Purpose: Heat and Cool
Zone Capability: Single Zone
Efficiency SEER2: Up to 18 SEER2
Efficiency EER2: N/A
Efficiency HSPF2: Up to 10 HSPF2
Matching Outdoor Unit: Single-Zone: ML outdoor heat pump NTXSMT***
Matching Outdoor Unit: Multi-Zone: N/A
Energy Star Certified: ENERGY STAR®
Refrigerant Type: R410A
Number of Fan Speeds: 4 fan speeds
Sound Level: Quiet operation
Wireless Remote: Control Options available
Factory Warranty Parts:
Registered Limited Warranty period: 10 years on internal functioning parts with registration;1year on internal functioning parts without registration
Manufacturer's Stated Benefits:
- Available capacities in kBtu/h: 09, 12, 15, 18, 24
- Anti-mold filter
- Heating operation range: -4° F – 75° F
- Cooling operation range: 14° F to 115° F
- Comfort control of temperature, fan speed, and air direction in each room or zone via kumo cloud® or other smart home devices

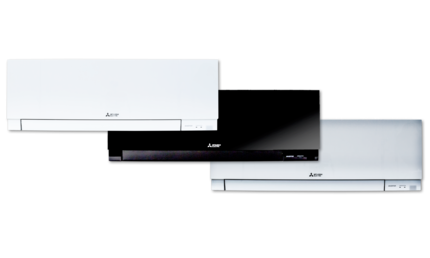

Designer Wall Mount MSZ-EF
Model Family: MSZ-EF**
Purpose: Heat and Cool
Zone Capability: Multi Zone
Efficiency SEER2: Based upon outdoor unit
Efficiency EER2: Based upon outdoor unit
Efficiency HSPF2: Based upon outdoor unit
Matching Outdoor Unit: Single-Zone: N/A
Matching Outdoor Unit: Multi-Zone: NTXMMX*** -NTXMPH***
Energy Star Certified: No
Refrigerant Type: R410A
Number of Fan Speeds: 5 fan speeds
Sound Level: Quiet operation
Wireless Remote: Control Options available
Factory Warranty Parts: Registered Limited Warranty period: 10 years on internal functioning parts with registration;1year on internal functioning parts without registration
Manufacturer's Stated Benefits:
- Available capacities in kBtu/h: 9, 12, 15, 18
- Three colors to choose from: glossy white, matte silver and glossy black
